Home Builder Survey Services in North Carolina

Residential construction survey errors are rarely discovered at a convenient time — and in Apex’s active building market, schedule delays and permit rejections have real financial consequences. These are the situations home builders, contractors, and developers most commonly bring to Meta Geomatics:

“Our rough stake was off and now the house is positioned incorrectly on the lot.”

An inaccurate rough stake is one of the most expensive errors in residential construction — because by the time it is discovered, excavation has often already begun. When stakes are set from incorrect control or without proper deed and plat research, the resulting positional error can trigger setback violations, encroachments onto easements, and costly remediation. Our licensed surveyors establish rough stakes from verified survey control and confirmed boundary positions — so your excavation crew digs in exactly the right place.

“Our foundation survey showed the footing is out of tolerance — and framing has already started.”

Foundation errors discovered after framing begins are among the most disruptive and expensive problems in residential construction. A timely foundation survey — performed before framing crews mobilize — catches alignment and elevation discrepancies while corrections are still manageable. Meta Geomatics provides foundation surveys with turnaround structured around your build schedule, not ours.

“The Town of Apex rejected our plot plan and we’ve lost two weeks waiting for resubmission.”

Plot plans and house location plans must meet the specific submission requirements of the Town of Apex Development Services — including setback documentation, impervious surface calculations, and boundary references that match recorded plat geometry. A plan prepared without current knowledge of Apex’s submission standards will be rejected. Our plot plans are prepared to Town of Apex requirements and reviewed by a licensed PLS before submission — accepted the first time.

“We need a FEMA flood elevation certificate and don’t know what’s required or how long it will take.”

FEMA flood elevation certificates are required by lenders, flood insurers, and permitting authorities on properties in or near FEMA-designated Special Flood Hazard Areas — and they must be prepared by a licensed surveyor using current FEMA Elevation Certificate forms. Meta Geomatics prepares FEMA flood elevation certificates for residential properties across Wake County, delivering the documentation your lender and insurer require in a format that meets current FEMA National Flood Insurance Program (NFIP) standards.

“We don’t have a certified impervious area calculation and the municipality is requiring one before final approval.”

Impervious area calculations and certifications are required by Wake County stormwater management regulations and the Town of Apex for building permit final approval on many residential projects. Without a certified calculation from a licensed surveyor, the final approval process stalls. Our impervious area certifications are prepared to Wake County and Town of Apex stormwater requirements — providing the third-party verification that permitting authorities require to release the final certificate of occupancy.

FEMA and Stormwater Documentation: FEMA flood elevation certificates are prepared using current FEMA Elevation Certificate forms in compliance with National Flood Insurance Program (NFIP) requirements. Impervious area calculations are prepared to Wake County stormwater management standards and certified by a licensed PLS.

Licensed PLS Review and Sealing: All survey deliverables — including foundation surveys, final as-built surveys, FEMA certificates, and impervious area certifications — are reviewed and sealed by a licensed Professional Land Surveyor in compliance with NC General Statutes and the regulations of the NC State Board of Examiners for Engineers and Surveyors.

Schedule-Responsive Communication with Builders and Permit Coordinators: Superintendents, project managers, and permit coordinators receive direct updates on survey availability, field findings, and any conditions that may affect the build schedule — in real time, not after the fact.

How Our Home Builder Survey Process Works in Apex, NC

Plot Plan / House Location Plan

Permit-ready plot plans for residential building permits across Wake County.

A plot plan — also called a house location plan — is the licensed survey document that shows the proposed position of a structure on a lot relative to property lines, required setbacks, and recorded easements, and it is one of the first deliverables required by the Town of Apex Development Services when a building permit application is submitted. Meta Geomatics prepares plot plans from verified boundary control, confirmed deed and plat research, and current Town of Apex submission standards — producing a document that accurately reflects the proposed building placement and meets all required annotation, certification, and scale requirements for permit review.

For home builders and developers active in Apex communities including Haddon Hall, Abbington, Friendship Station, and Bella Casa — and on new residential lots along the NC 540 growth corridor — a correctly prepared plot plan is the document that opens the permit process. A rejected plot plan costs time and delays the entire build schedule.

Rough Stake

Precise residential rough stake services in Apex, NC — setting the building footprint before excavation.

The rough stake establishes the proposed building corners and reference lines on the ground before excavation begins — and the accuracy of every subsequent build phase depends on getting this step right. Meta Geomatics sets residential rough stakes from a verified survey control network established from the recorded plat and confirmed boundary positions, ensuring that the proposed footprint is positioned correctly relative to lot lines, easements, and required setbacks before a single cubic yard of soil is moved.

For residential projects in Apex’s active development communities — from new lots in Haddon Hall and Abbington to custom home sites along US 64 and the New Hill Road corridor — an accurate rough stake prevents the setback violations, easement encroachments, and foundation repositioning costs that result when excavation proceeds from poorly placed reference marks.

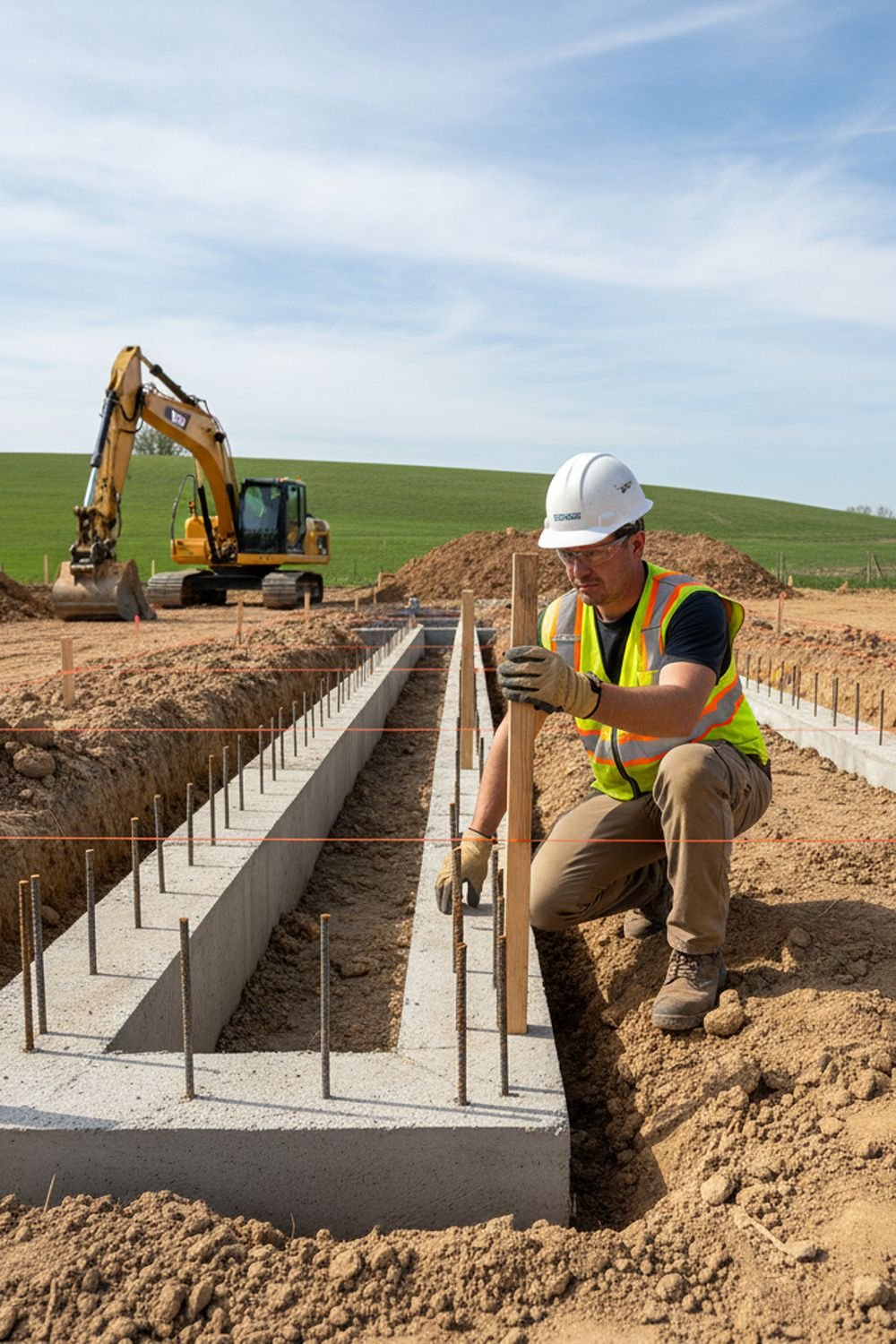

Permanent Footing Stake

Accurate footing offset stakes for foundation contractors in Wake County.

Permanent footing stakes provide the precise horizontal control references that foundation contractors use to form and position footings in the correct location — and they are set after rough grading is complete, giving form crews the exact reference points they need before formwork begins. Meta Geomatics sets permanent footing stakes from the verified site control network, referenced to confirmed boundary positions and approved building placement, ensuring that footing forms are positioned accurately relative to the engineer’s design before any concrete is placed.

On residential construction projects across Wake County — including production home builds in Apex’s growing neighborhoods and custom builds in communities near the NC 55 and US 64 corridors — accurately set permanent footing stakes prevent the form misalignment errors that lead to foundation surveys showing out-of-tolerance positions and the costly corrections that follow.

Form Check Verification

Pre-pour form check survey services for residential builds in Apex and Wake County.

Form check verification is the quality control step that confirms foundation formwork is in the correct position before concrete is poured — and it is the last practical opportunity to catch and correct alignment errors without structural consequences. Meta Geomatics performs form check verification surveys that confirm formwork position and orientation relative to approved building placement, lot lines, and required setbacks — providing the field confirmation that builders, foundation contractors, and permit inspectors need before the pour proceeds.

For residential projects across Apex and Wake County, a form check survey performed before the pour is a small investment compared to the cost of a foundation that must be corrected, demolished, or disclosed as a setback violation at the time of closing.

Pin Footing / Brick Points

Precision footing pins and brick layout points for framing and masonry across Wake County.

Pin footing and brick point services establish verified control points on the completed foundation slab or footing — giving framing crews, masonry contractors, and brick layers the precise reference marks they need to set walls, corners, window openings, and brick courses in the correct horizontal positions. Meta Geomatics sets pin footing and brick points from the verified survey control network, referenced to the approved building footprint and foundation survey data, ensuring that above-grade construction proceeds from a spatially accurate foundation reference.

For custom home builders and production builders active across Wake County’s residential communities — from Apex neighborhoods near Bella Casa and Friendship Station to new developments along Holly Springs Road — accurate footing pins and brick points eliminate the dimensional errors in wall placement and masonry layout that compound through every subsequent trade.

Foundation Survey

Licensed foundation surveys for residential builds in Apex and Wake County — verified before framing begins.

A foundation survey measures and documents the as-built position, orientation, and elevation of a completed foundation — confirming whether it was constructed in compliance with the approved plot plan, permit conditions, and required setbacks before framing crews mobilize. In Apex and across Wake County, a foundation survey is often required by the Town of Apex Development Services as a condition of the framing permit, and it is always a sound practice even where not specifically required — because a foundation that is out of position is far less costly to address before framing than after.

Meta Geomatics performs residential foundation surveys with turnaround structured around your build schedule, delivering a signed, sealed survey report that documents foundation position relative to lot lines, easements, and required setbacks — giving your permit coordinator, construction lender, and project manager the verified field documentation they need to proceed with confidence.

Final As-Built Survey

Signed, sealed final as-built surveys for residential loan close-out and certificate of occupancy in Wake County.

A final as-built survey documents the completed structure and all site improvements in their as-constructed positions — confirming that the finished home, driveway, accessory structures, and site features were built in compliance with the approved permit and that no setback violations, encroachments, or easement conflicts exist at the time of closing. In Wake County, final as-built surveys are required by construction lenders for loan disbursements and certificate of occupancy applications, and by title companies for residential closing packages on newly constructed homes.

Meta Geomatics produces final as-built surveys using survey-grade GPS/GNSS and total station equipment, capturing the as-constructed position of all required improvements and delivering a signed, sealed drawing in CAD (.DWG) and georeferenced PDF formats — formatted to meet the submission requirements of Wake County permitting agencies, construction lenders, and title companies operating in the Research Triangle residential market.

Impervious Area Calculations / Certifications

Certified impervious area calculations for final permit approval and certificate of occupancy in Apex, NC.

Impervious area calculations and certifications document the total impervious surface area of a completed residential project — including the home footprint, driveway, walkways, and accessory structures — and certify that the project complies with the applicable impervious surface limits established by Wake County stormwater management regulations and the Town of Apex. These certifications are required for final building permit approval and certificate of occupancy on many residential projects in Apex and across Wake County, and a missing or non-compliant certification can stall the final approval process at the worst possible time.

Meta Geomatics prepares impervious area calculations and certifications as part of the final as-built survey process or as a standalone deliverable — certified by a licensed PLS and formatted to meet the specific submission requirements of Wake County and Town of Apex permitting agencies.

Site Plans

Residential site plans for building permit applications across Apex and Wake County.

A residential site plan documents the full layout of a proposed development on a specific lot — showing structure placement, grading, drainage, utility connections, impervious surfaces, and all required setback and easement documentation in a format acceptable to the Town of Apex Development Services and Wake County for building permit review. Site plans are required for most residential permit applications in Apex and Wake County, and a site plan that does not meet current submission standards will delay permit issuance and the entire build schedule that follows.

Meta Geomatics prepares residential site plans from verified survey control and current lot data, incorporating required annotations, certifications, and scale references that meet Town of Apex and Wake County submission standards — reviewed by a licensed PLS before submission to minimize rejection risk. For builders and developers managing multiple lots across Apex’s active residential communities — from new phases in established neighborhoods to custom lots along the NC 540 and US 64 corridors — consistent, permit-ready site plan preparation is the foundation of an efficient build pipeline.

FEMA Flood Elevation Certificates

Licensed FEMA flood elevation certificates for residential properties in Wake County, NC.

A FEMA flood elevation certificate is the licensed survey document that records the elevation of a structure relative to the Base Flood Elevation (BFE) established by FEMA’s Flood Insurance Rate Maps (FIRM) — and it is required by mortgage lenders and flood insurance providers on properties in or adjacent to FEMA-designated Special Flood Hazard Areas. In Wake County, a significant number of residential properties — particularly those near Jordan Lake tributaries, Beaver Creek, and other drainage corridors that cross Apex and the surrounding communities — fall within or near FEMA flood zones where elevation certificates are mandatory for closing and insurance purposes.

Meta Geomatics prepares FEMA flood elevation certificates using current FEMA Elevation Certificate forms in compliance with National Flood Insurance Program (NFIP) requirements, completed by a licensed surveyor and formatted for submission to lenders, flood insurance providers, and FEMA Letter of Map Amendment (LOMA) applications where applicable.

Topographical Surveys

Licensed topographic surveys for residential site design and grading in Apex and Wake County.

A topographic survey captures the existing ground elevations, contours, drainage patterns, and physical site features of a residential lot — providing the accurate terrain data that engineers, architects, and site designers need to produce grading plans, drainage designs, and foundation engineering for new residential construction. In Apex and across Wake County, topographic surveys are required for many custom home and infill development projects where existing terrain significantly affects grading, drainage, and foundation design decisions.

Meta Geomatics performs residential topographic surveys using survey-grade GPS/GNSS and total station equipment, capturing the required elevation data and site features at the density and accuracy needed for engineering and permitting purposes — delivered in CAD format compatible with civil and architectural design software. For builders and designers working on sloped, wooded, or drainage-sensitive lots in Apex communities along the NC 540 corridor and the US 64 and NC 55 intersections, an accurate topographic survey is the spatial foundation on which every sound site design decision is built.

Easement Maps and Surveys

Licensed easement surveys and plats for residential properties in Wake County, NC.

Easement surveys locate, document, and plat the easements that affect a residential property — including utility easements, drainage easements, access easements, and conservation easements — producing signed, sealed easement plats and legal descriptions that are accepted by municipalities, utility companies, title companies, and courts. In Wake County, easement surveys and plat preparation are required for new easement dedications, easement vacations, and utility installation projects affecting residential lots — and accurate easement documentation protects property owners and builders from title and construction conflicts before they surface.

For home builders and developers working in Apex’s established and emerging residential communities — from neighborhoods near Abbington and Haddon Hall to new developments adjacent to the US 64 corridor and the Veridea mixed-use district — accurate easement documentation protects every project from the boundary ambiguities and encroachment risks that otherwise surface when they are most disruptive and expensive to resolve.

Ready to Schedule Home Builder Survey Services in Apex, NC?

Meta Geomatics PLLC is available Monday through Friday, 8:00 AM to 5:00 PM, with licensed construction survey crews serving Apex, Wake County, Chatham County, and the Research Triangle. We understand that your build schedule and permit timeline drive everything — and we structure our teams to respond at the pace your project demands. Looking for a licensed home builder surveyor in Apex, NC who covers every phase from rough stake to final as-built? Contact Meta Geomatics today.
